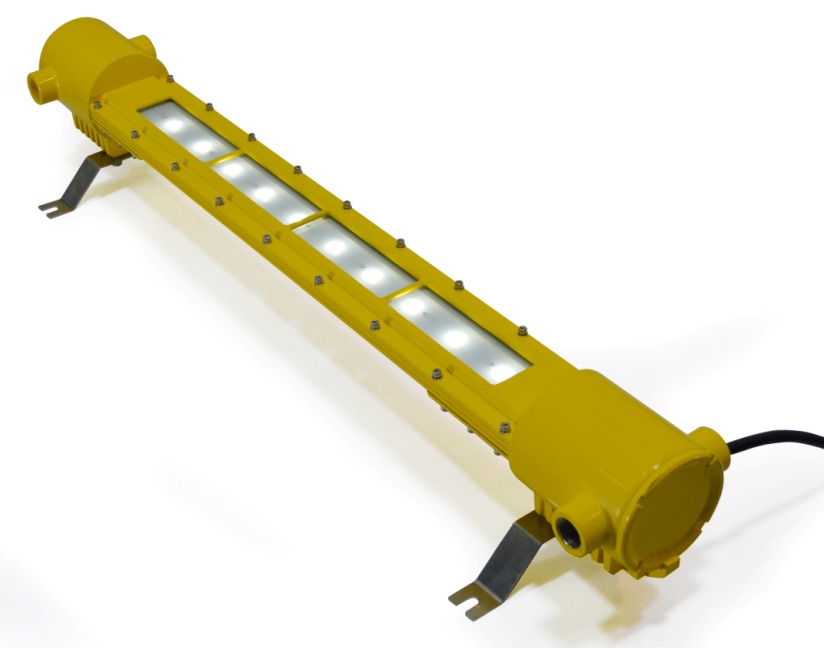

Explosion Proof LED AEDL618A – 40W

AEDL618A series LED Explosion Proof Floodlights are applicable for Zone I, (Class 1, Division 1), and Zone 2, (Class 1, Division 2), gas areas, restricted areas, heavy industrial processing equipment areas, drilling platform and other coastal or offshore dangerous areas. Including ports, ships, oil, petrochemical, oil depot, and is designed and manufactured according to requirements of EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is：Ex d IIB+H2 T5 Gb / Ex tD 21 T95°C / CLASS 1, Division 1 & II, Groups B, C, D.

$713.00

SKU: 70620-AEDL618A Categories: , Tag:
40W Explosion Proof LED lights Specifications:
Light

Source:

 LED CREE XT-E/ CREE XM-L
Luminous Flux 40W 3200 lumens
Color Temperature 5700-6000K
Color Rendering Index: Ra>70
 Power: 40 watt
 Input Voltage: AC 85-265V
 Housing Material: Die cast aluminum housing with tempered glass
 Dimensions: ø90X800 mm
 Weight: 8 kg
 Working Temperature: -30°C – 50°C
 Beam angle: 180°
 Corrosion protection Classification: WF2
 IP Classification: IP66
 EX Mark: Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃ / CLASS 1, Division 1 & II, Groups B, C, D
 Total harmonic current: <15%
 Factor: >0.90
 Mounting Angle: 360°
AEDL618 dimension: 910*151*117mm
Package carton size: 960*225*210mm
Unit weight: 8kg / 18 Lbs.
NOTE:  DL618E with emergency back up 20W light with 2000 lumens and 1.5 hours run time. Call for price.

Hazardous Location Lights: This category features HID & LED Drop Lights, Hand Lights, 40W Explosion Proof LED lights, Portable Explosion Proof Lights and other intrinsically safe lighting products. These lights are used in areas where petrochemical or dust particles have the potential to exist and the possibility of ignition is possible. Explosion proof lighting is rated Class 1, Division 1/2 or Class 2, Division 1/2 as specified by UL standards. These areas include offshore lights, rig lights, spray booths, cleaning vessels, fuel cells, plant turn around, marine work areas, grain storage, dust, or munitions.

Additional information

Weight 22 lbs
Dimensions 40 × 9 × 8 in
